| Brand Name : | Trumony |
| Model Number : | TR- 4343/3003mod 3/7072 |
| Certification : | ISO1901-2008 |
| Price : | Negociable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 800,000 per a year |
| Delivery Time : | 30 working days |

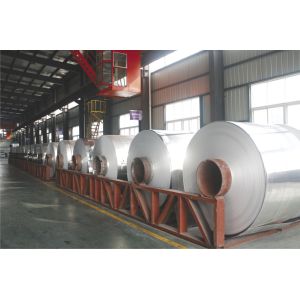

Alloy 4343/3003/7072 Cladding Ratio 8% Aluminium Heat Exchanher Plates In Coil For Radiator
Application: Can be used in a variety of heat exchange constructions where the basic function is to efficiently transfer heat. Also this fin foil can be used for evaporator and condenser in most residential, automotive ,and commercial air conditioning units and in humidifiers and etc.
Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | - | 0.1 | 0.05 | 0.03 | - |
Cladding Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8 - 8.2 | 0.8 | 0.25 | 0.1 | - | 0.20 | - | 0.05 | - |
| 7072 | 0.3 | 0.4 | 0.1 | 0.1 | 0.1 | 0.8-1.3 | - | 0.- |
Strength Of Plate Materials
| Pre-Braze Strenght ( Mpa) | Post - Braze Strength ( Mpa ) |
Alloy | Temper | Yield Strength | Tensile Strength | Temsile Strength | Yield Strength |
4343/3003/7072/4343 | HO | > / = 45 | 130 -160 | 155 | 60 |

|
