Microchannel Automobile Aluminum Cooling Tube Serpentine Shape Extruded

Ask Lasest Price
Brand Name :	Trumony
Model Number :	TR-CY095
Certification :	ISO9001,ISO14000,IATF14969
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	100000 tons yearly
Delivery Time :	30days including tooling time

Add to Cart

Product Details
Company Profile

Microchannel Automobile Aluminum Cooling Tube Serpentine Shape Extruded

Automobile Extruded Microchannel Serpentine Aluminum Cooling Tube

Description

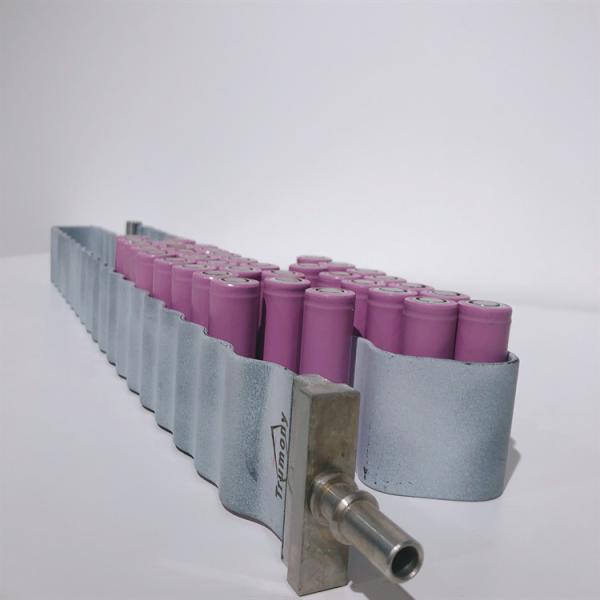

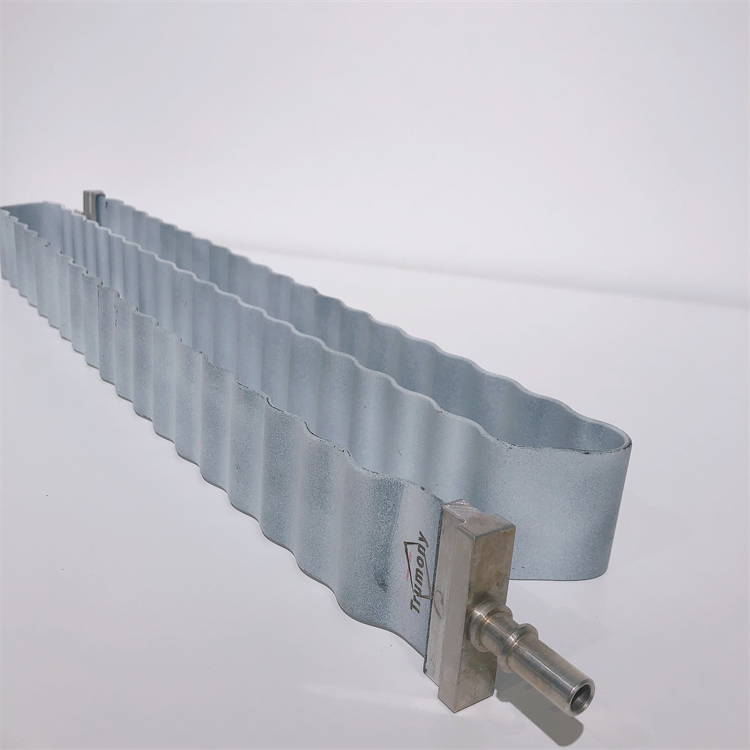

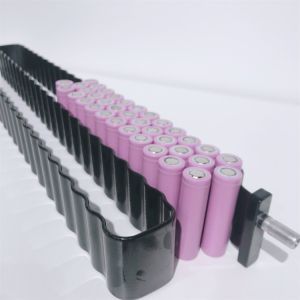

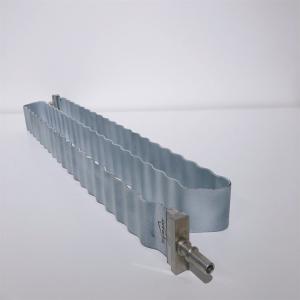

Automobile Extruded Microchannel Serpentine Aluminum Cooling Tube are made by extruded aluminum mocri channel tube and shaped through folded,forming and welding . The aluminum serpentine tube are widely adopted for EV battery cooling of electromobile /electric vehicle/new energy automobile/vehicle/car. This cooling tube is suitable for cylindrical batteries such as 18650,21700 and 46800. Certainly, we also have aluminum water liquid cooling plate for prismatic batteries.

Specification of cooling coldplate

No.	Item	Data
1	Type	Serpentine Aluminum Cooling Tube
2	Grade	1000,3000,5000,7000
3	Temper	O,H12.H14,H24,H112
4	Size	Customize as your request
5	Thickness	2-5MM
6	Usage	EV Battery Cooling system spare part

Alloy code	Temper	Tensile Strength Rm(Mpa)	Yield Strength Rp0.2(Mpa)	Elongation
TR010,TR020,TR030,TR040, TR050,TR110,TR310,TR116, TR316,TR111,TR313,TR121, TR131,TR141,TR150,TR151, TR156 etc	O	95~135*	≥35*	≥15*
	H14	140~185	≥125	≥1.5
	H24	140~185	≥125	≥3
	H16	185~225	≥160	≥1
	H18	≥185	-	≥0.5
TR166 etc tube material	H24	185~235	≥150	≥8
TR116,TR316 etc tube material	H14	140~185	≥125	≥3
TR116,TR316 etc tube material	H24	140~185	≥125	≥8

Our advantage of battery cold tube:

1	Tooling development	we make them by ourself , so we can make initial testing prompt and accurate.
2	Making various of heat exchangers	We can do different shapes cooling plate as your request ,which will meet to make the parts fit into different packs.
3	Assistance in parts design	we have our own rich experience Engineer Dept. we can provide professional suggestions regarding feasibility of carrying out new designs.

Company Information

Trumony Aluminium Limited, We are a professional battery pack heat exchanger manufacturer.
Our company designs, makes and distributes heat exchangers for battery packs, which carrying cylindrical cells, prismatic cells or pouches.

We have full solutions about cooling the battery cells, for example snake tubes for cylindrical cells (18650,21700); water cooling plate for prismatic cells, and plate channel for pouches.
We do hope to utilize our expertise to have chance to establish long-term cooperation with you , as battery thermal management is very critical in an operation of EV.
