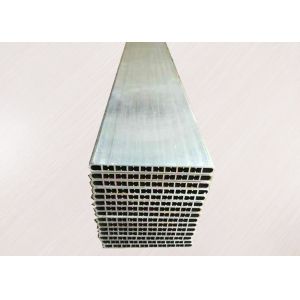

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner

Ask Lasest Price
Brand Name :	Trumony
Model Number :	customizable
Certification :	CE/RoHS/GS/ISO9001
Supply Ability :	50, 000 Mt Per Year
Delivery Time :	according to specification and quantity

Add to Cart

Product Details
Company Profile

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner

Micro multi-port tube is applied not only in car air conditioner but also in the field of commercial, household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler.

1. Chemical Composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

2. Mechanical Properties

No.	Alloy	Temper	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elogation(%)
1	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
2	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
3	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
4	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
5	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

3. Size Tolerance

Width	Thickness	Wall Thickness	Length	Lateral Curvature	Frontal Curvature	Twsiting Dgree
± 0.05mm	± 0.03mm	± 0.05mm	± 0.03mm	≤ L× 0.2%	≤ L× 0.25%	≤ L× 0.15%

4. Corrosion Resistance
Salt spray test: ≥ 750 hours
5. Zn Coating Standards
6/8/10/13± 2g/square meter
6. Flux Cotaing Standards
10-15± 2g/square meter

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
